CAR ROTISSERIE 360° MOVABLE CAP. 900 KG - RT
Art.:
RO-900-RT
CAR ROTISSERIE 360° MOVABLE CAP. 900 KG - RT is available to buy in increments of 1
Description

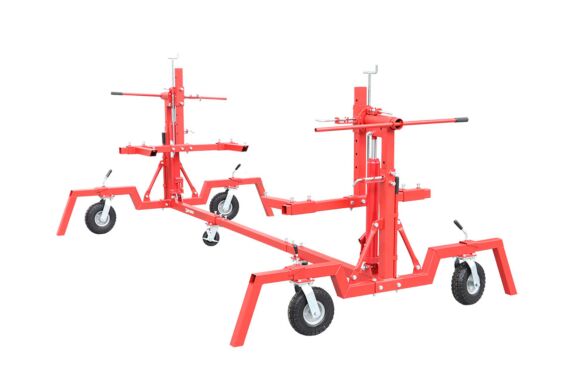

With this tilting bridge, you can turn a vehicle 360°. Because of this, you can easily reach all parts of the bodywork that you want to weld, sandblast, paint, etc... The whole thing is adjustable in width and length. Thanks to the two hydraulic cylinders, you can easily mount the bodywork, lift the chassis or bodywork directly from the jack stands to the desired height, and all this without the help of any other tool. For trouble-free tilting, the centre of gravity can be adjusted by means of the rotary handles.
This mobile car rotisserie is equipped with 6 swivel castors, allowing it to be moved easily with the bodywork on it. This versatile bodywork turntable is the perfect solution for any hobbyist or professional working on the restoration of car bodies, frames and is both labour and time saving.
The
RO-900-RT is equipped with large wheels to make it easier to move on uneven surfaces or when your floor covering is not made of poly concrete. The RO-900-RT also has additional stability feet.
Specifications:
- Capacity of each unit = 450 kg (total 900 kg)
- Max opening between the units = 6 m
- 360° positioning
- Adjustable height, width
- Centering of gravity by easy wind handle
- 2 Hydraulic rams for highering of load
- Square tubes 6x6 ; 5x5 ; 4x4 cm
- 6 Swivel wheels
- 2 Spring loaded positioning pins to fix into 10 position safety lock
- Total weight: 178 kg
Note: Body or frame attachments should be made by yourselves, according to the vehicle.
