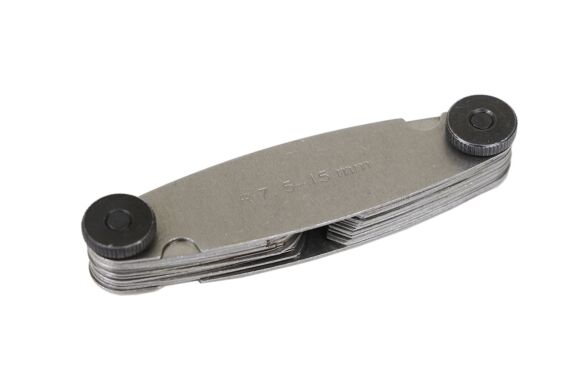

RADIUS GAUGE 7.5 - 15 MM

A radius gauge is a handy device for checking radii of tools and dies easier and faster. The gauge is placed against the edge to be checked and any light leakage between the blade and edge indicates a mismatch that requires correction. Radius gauges therefore always require a bright light behind the object to be measured.



• Gauge features leaves for measuring both concave and convex radii

• Each leaf is clearly stamped with the radius size (in mm)

• Sizes 7.5 – 15 mm (32 leaves): 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14, 14.5, 15 (concave and convex)

• Stainless steel
