SLIP ROLL MACHINE 1000 MM, CAPACITY 1.5 MM
Art.:
7310-15-00
Recommended products
SLIP ROLL MACHINE 1000 MM, CAPACITY 1.5 MM is available to buy in increments of 1
Description

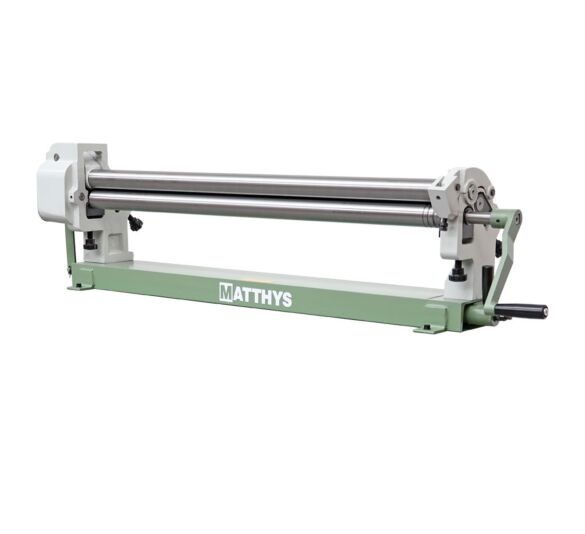

This roll machine transforms metal sheets in a certain curve or radius. Ideal for making tubes, cones, cylinders, half-rounds, ...
The machine features a cast iron frame on a steel sheet foot. The upper roll can be tilt over to facilitate the removal of the rolled work-piece. Rolling is done by a crank on the side of the machine.
The front and back rolls are separately adjustable so conical pieces can be made. These rolls are also equipped with a groove for wire rolling.
Optimal price / quality ratio.
- Diameter of the rollers: 50 cm
- Max. working width: 1000 mm
- Max. capacity when using mild steel: 1.5 mm; using galvanised steel lowers the max. capacity
- Weight: 136 kg
- Packing dimensions: 158 x 44 x 60 cm
The machine features a cast iron frame on a steel sheet foot. The upper roll can be tilt over to facilitate the removal of the rolled work-piece. Rolling is done by a crank on the side of the machine.
The front and back rolls are separately adjustable so conical pieces can be made. These rolls are also equipped with a groove for wire rolling.
Optimal price / quality ratio.
- Diameter of the rollers: 50 cm
- Max. working width: 1000 mm
- Max. capacity when using mild steel: 1.5 mm; using galvanised steel lowers the max. capacity
- Weight: 136 kg
- Packing dimensions: 158 x 44 x 60 cm
