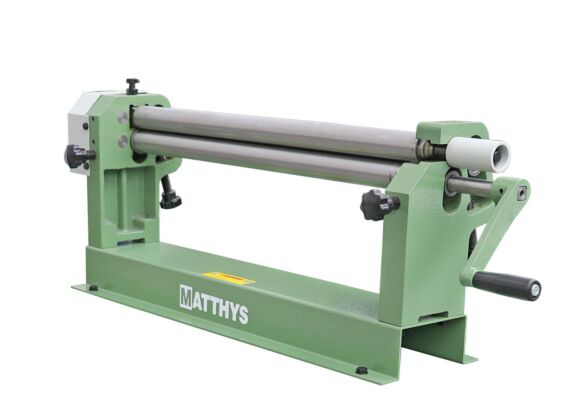

SLIP ROLL MACHINE 610 MM
Art.:
7306-00
SLIP ROLL MACHINE 610 MM is available to buy in increments of 1
Description
This roll machine transforms metal sheets in a certain curve or radius. Ideal for making tubes, cones, cylinders, half-rounds, ...
The machine features a cast iron frame on a steel sheet foot. The upper roll can be tilt over to facilitate the removal of the rolled work-piece. Rolling is done by a crank on the side of the machine.
The front and back rolls are separately adjustable so conical pieces can be made. These rolls are also equipped with a groove for wire rolling.
Optimal price / quality ratio.
- Diameter of the rollers: 38 cm
- Max. working width: 610 mm
- Max. capacity when using mild steel: 1 mm ; using galvanised steel lowers the max. capacity
- Weight: 44 kg
- Packing dimensions: 97 x 29 x 44 cm
The machine features a cast iron frame on a steel sheet foot. The upper roll can be tilt over to facilitate the removal of the rolled work-piece. Rolling is done by a crank on the side of the machine.
The front and back rolls are separately adjustable so conical pieces can be made. These rolls are also equipped with a groove for wire rolling.
Optimal price / quality ratio.
- Diameter of the rollers: 38 cm
- Max. working width: 610 mm
- Max. capacity when using mild steel: 1 mm ; using galvanised steel lowers the max. capacity
- Weight: 44 kg
- Packing dimensions: 97 x 29 x 44 cm
