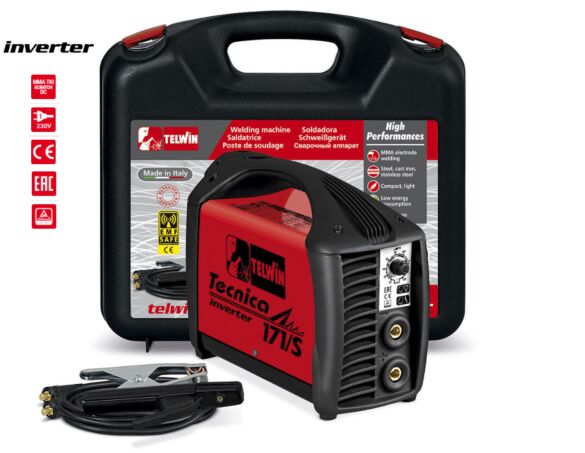

TELWIN WELDING MACHINE TECNICA 171/S - 230 V is available to buy in increments of 1
Description
This portable inverter welding device for MMA and TIG welding in direct current is suitable for use with different electrodes: rutile, cast iron, stainless steel,... Due to its light and compact shape, welding is much easier. This welding machine is equipped with a HOT START, this for an optimal start-up without splashing. The Arc Force, on the other hand, supports arc stability and also ensures that the arc is maintained while it comes into contact with the weld pool.
Features:
- compact and light
- high welding current stability despite fluctuations in the mains voltage
- arc power, hot start and anti-stick devices
- thermostatic, overvoltage, undervoltage, overcurrent, motor generator (+/- 15%) safety devices
- complete with MMA welding accessories and plastic carrying case
Supplied accessories:
- CABLE TW05V-A 1X025 L = 1.80 M DINSE
- PLASTIC CARRYING CASE
- DALLAS 300 ELECTRODE HOLDER 300A
- TOLEDO 250 WORK CLAMP
Technical data:
- Mains voltage: 230 V
- Mains frequency: 50 / 60 Hz
- Current range: 10 - 150 A
- Degree of protection: IP23
- Max. voltage empty: 75 V
- Max. absorbed power: 4.2 kW
- Min. power generator: 6 kW
- Mains fuse: 16 A
- Efficiency: 86 %
- Power factor (Cosphi): 0.7
- Diameter electrodes DC: 1.6 - 4 mm
- Dimensions: 38 x 48 x 17 cm
- Weight: 6.6 kg
- Max. current: 28 A
- Absorbed power at 60%: 2.6 kW
